Born For
Disruption
technological revolution
M1
Scroll Mouse
Born For
Disruption
Scroll Mouse
Rich in function
You focus on everything
Body composition analysis
Body posture Analysis

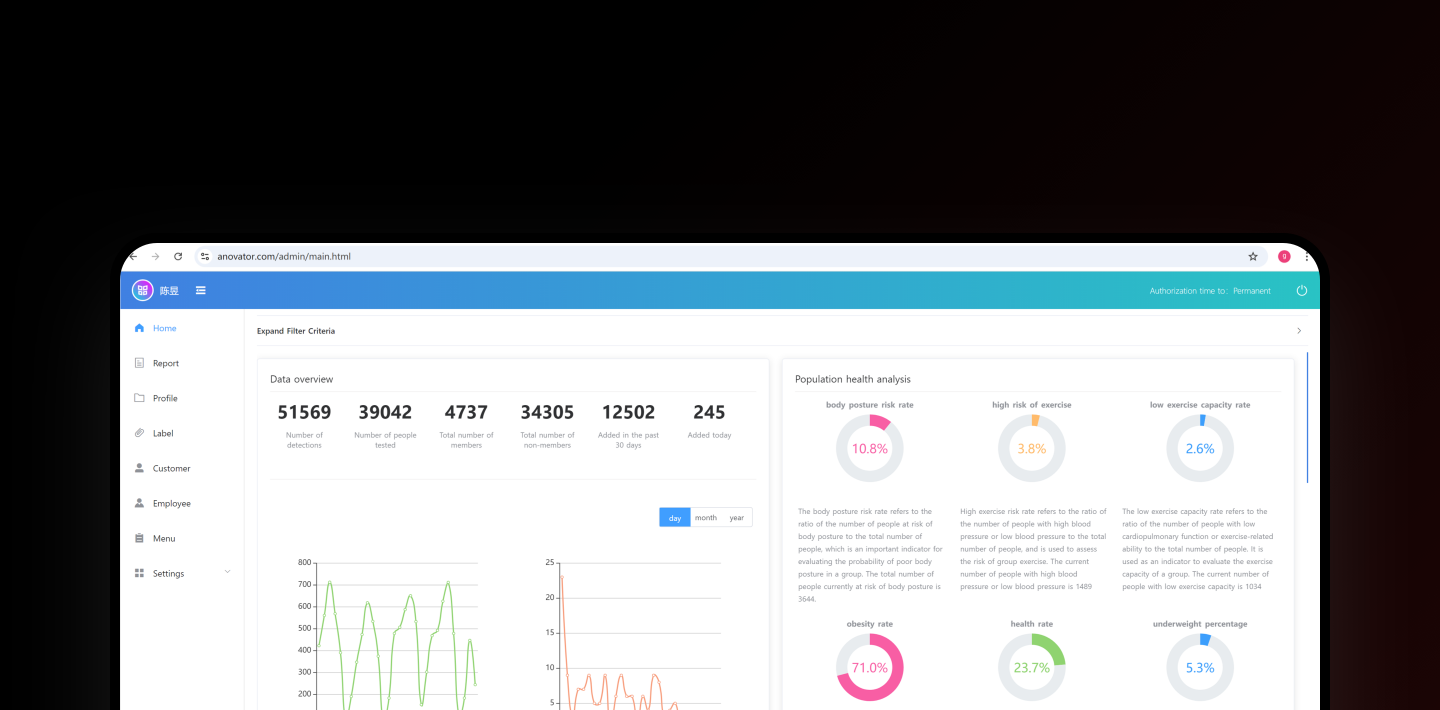

Detection Data Analysis
Test Report

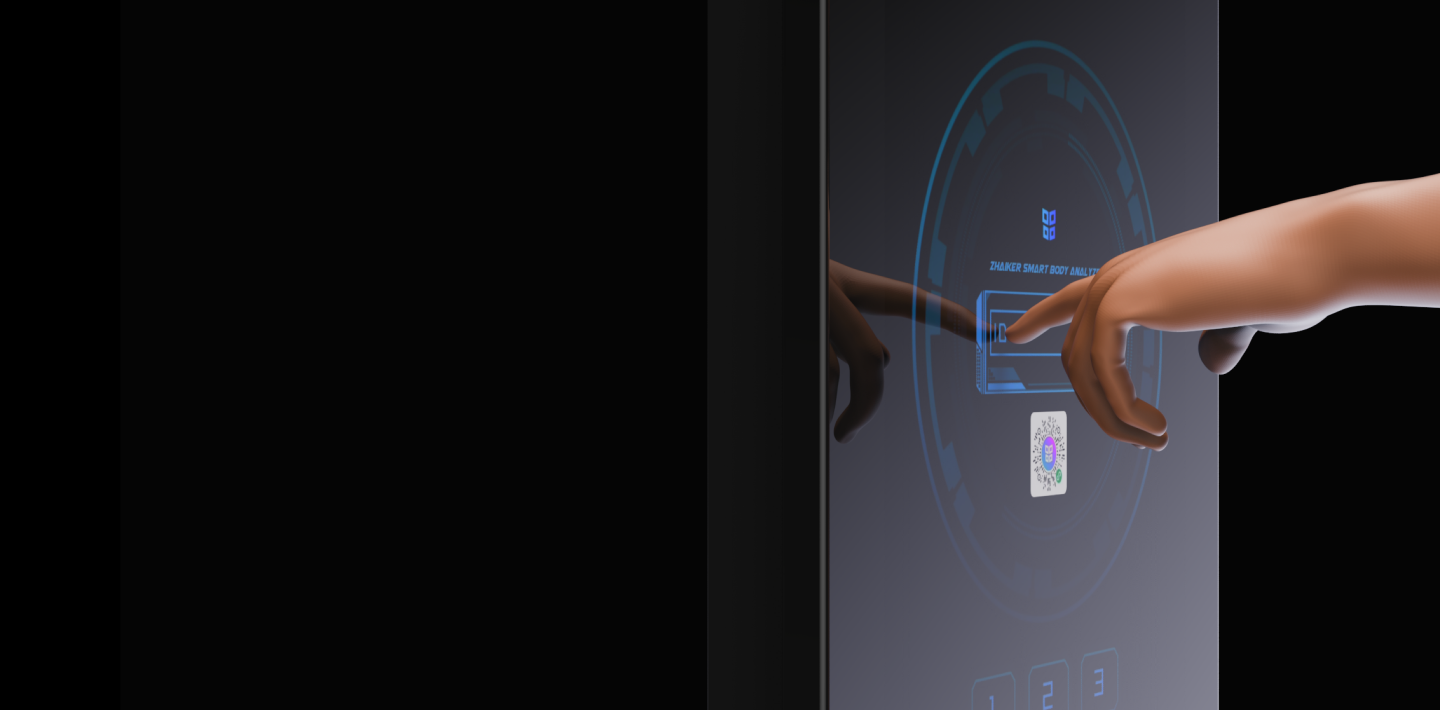

Smart screen
Close at hand
Immersive body testing
IPS HD Touch
Black
tempered glass
Highlight the beauty of industrial technology, minimalist high-end fashion

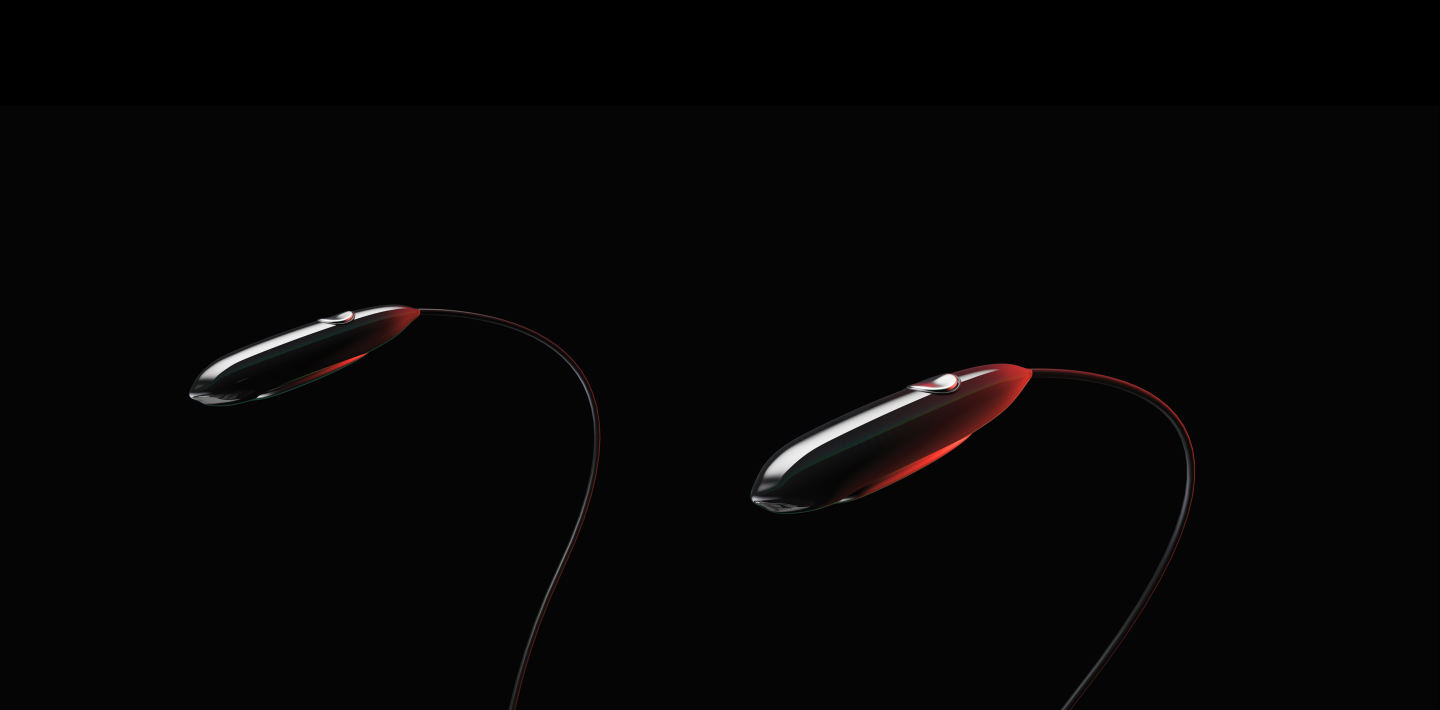

Electrode grip 3.0
Ergonomic design,designed for physical measurement, fully fit the curve of the palm
Multi-core
power cord
High-precision multi-core wire harness is used to ensure the
safety of human detection and obtain accurate data
The voltage through the human body during the detection is 1V
Body composition analysis
Gender and age differences were excluded based on real impedance measurements
Pose analysis
Using a high-precision AI camera, combined with the big data
analysis of human skeleton points in the cloud, the posture
risks of human high and low shoulders, O-legs, scoliosis, head tilt,
hunchback, pelvis forward, knee hyperextension and so on are evaluated.
M1 color
Industrial high
precision sensor
Accurately measure the weight per gram of the human body and
the resistivity change per ohm to ensure the accuracy and stability
of the measurement results
ANOVATOR AI
Powerful data computing power escorts the
accuracy of physical measurement.
| User ID Login/Phone Number Login | On Screen Results |
| Printable Results | Handle Grips |
| Weight | BMI |
| Body Fat Percentage | Muscle Mass |
| Visceral Fat Area | Subcutaneous Fat Area |
| Protein Content | Total Body Water |
| Skeletal Muscle | Fat-Free Body |
| Bone Mass | WHR |
| Body Age | BMR(kcal) |
| Obesity Degree (%) | Desirable Weight |
| Weight Control | Fat Control |
| Muscle Control | Segmental Muscle |
| Segmental Body Fat | Body Type Classification |
| Body Posture Analysis | Total Energy Expenditure (kcal) |
| Calorie Consumption (kcal/hour) | Expected Fat Burning (kg) |
| Target Body Fat | Exercise Program Advice |
| Estimated Completion Period | Body Composition History |
| Pervious Data Comparison |
| Screen Host | Brand | Anovator |
| Product Name | Body Composition Analyzer | |
| Model | M1 | |
| Color | Black | |
| Operating System | Android 7.1 | |
| Camera | 1080P | |
| Material | Tempered Glass Led Screen + Aluminum Alloy | |
| Size & Weight | Product Size |
Host: 1700mm*460mm
Base: 108mm*480mm*900mm |
| Package Size |
Host: 1810mm*220mm*610mm
Base: 1010mm*577mm*180mm |
|
| Weight | 45KG | |
| Display Screen | Screen Size | 21.5 Inch |
| Screen Type | 1920*1080 IPS HD Touch | |
| Technical Parameters | Measurement methods | 8-point contact electrodes, multi-frequency bioelectrical impedance analysis technology |
| Frequency | 20,100 kHz | |
| Electric Current | <280uA | |
| Power consumption | 60VA | |
| Function parameter | Report | Phone/Paper Print Report/Web |
| Voltage |
Input: AC 220V，50/60Hz Output：DC 12V,5A |
|
| Transmission Port | USB3.0/Bluetooth/Wired/Wireless | |
| Height Range | 80-200cm | |
| Weight Range | 0-200kg | |
| Age Range | 3-99 years old | |
| Operating Environment |
Internet Connection Required Temperature: 10-40℃, Humidity: 30%-75% Do not place the device by the window to avoid direct sunlight. Do not shine direct light on the device screen. Do not hit the device hard. |
|
| Save the environment | Temperature: -20~70℃, Humidity: ≤95% |
