ANOVATOR A5

Comprehensive body composition analyzer

Scroll Mouse

Perfect body

A5 supports 12 functions, comprehensive detection of body risk, professional
version of body composition detection instrument

Body composition analysis
Athletic capacity Analysis
Sp02
Sports safety Analysis
Balance Assessment
Heart Rate Test
Response Assessment
Body posture Analysis
Detection Data Analysis
Visual acuity Assessment
Shoulder Joint Range of motion Evaluation Function
Test Report

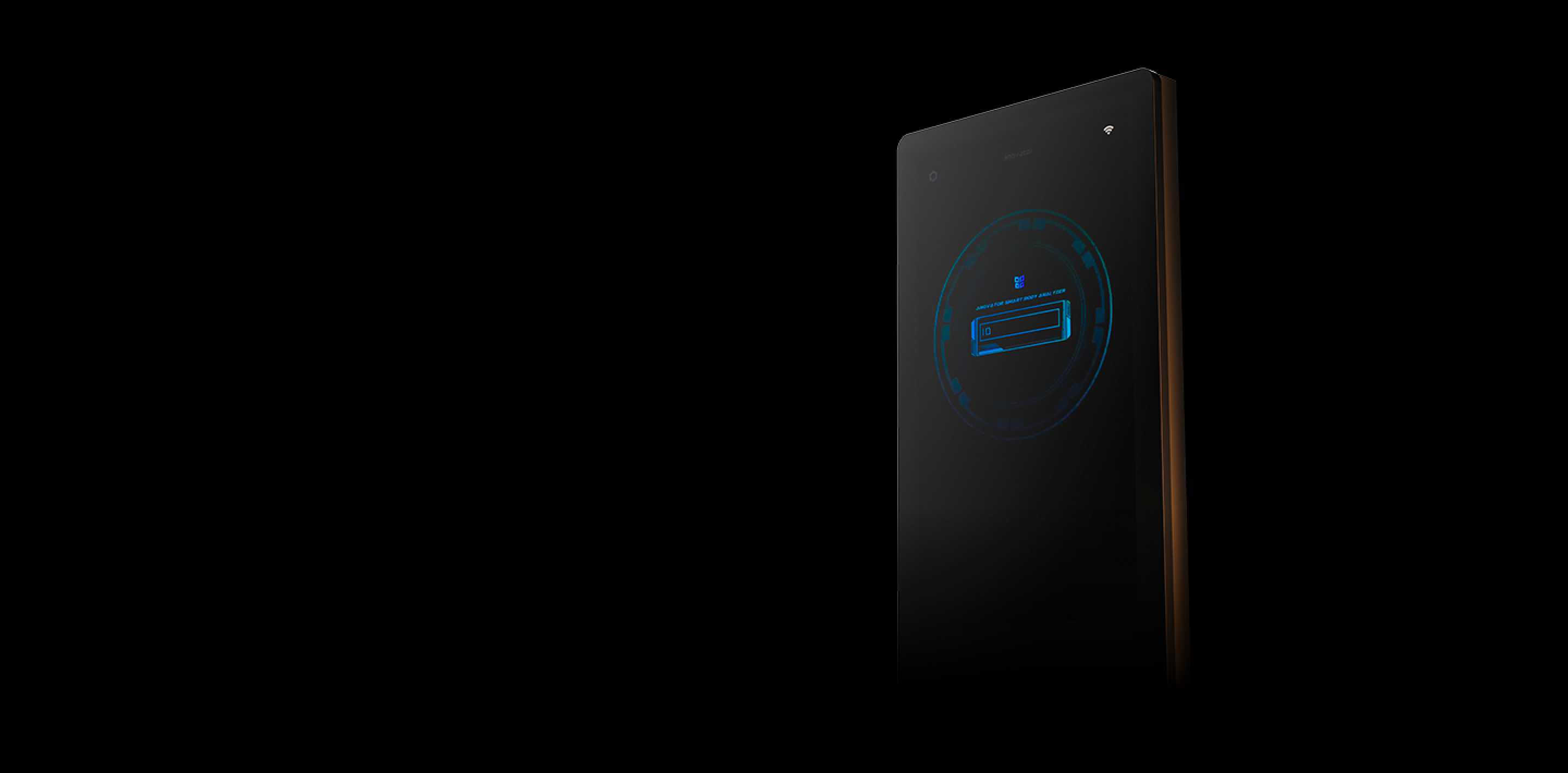

32  INCH

HD SCREEN

Immersive body testing
IPS HD Touch

Black
tempered glass

Highlight the beauty of industrial technology, minimalist high-end fashion

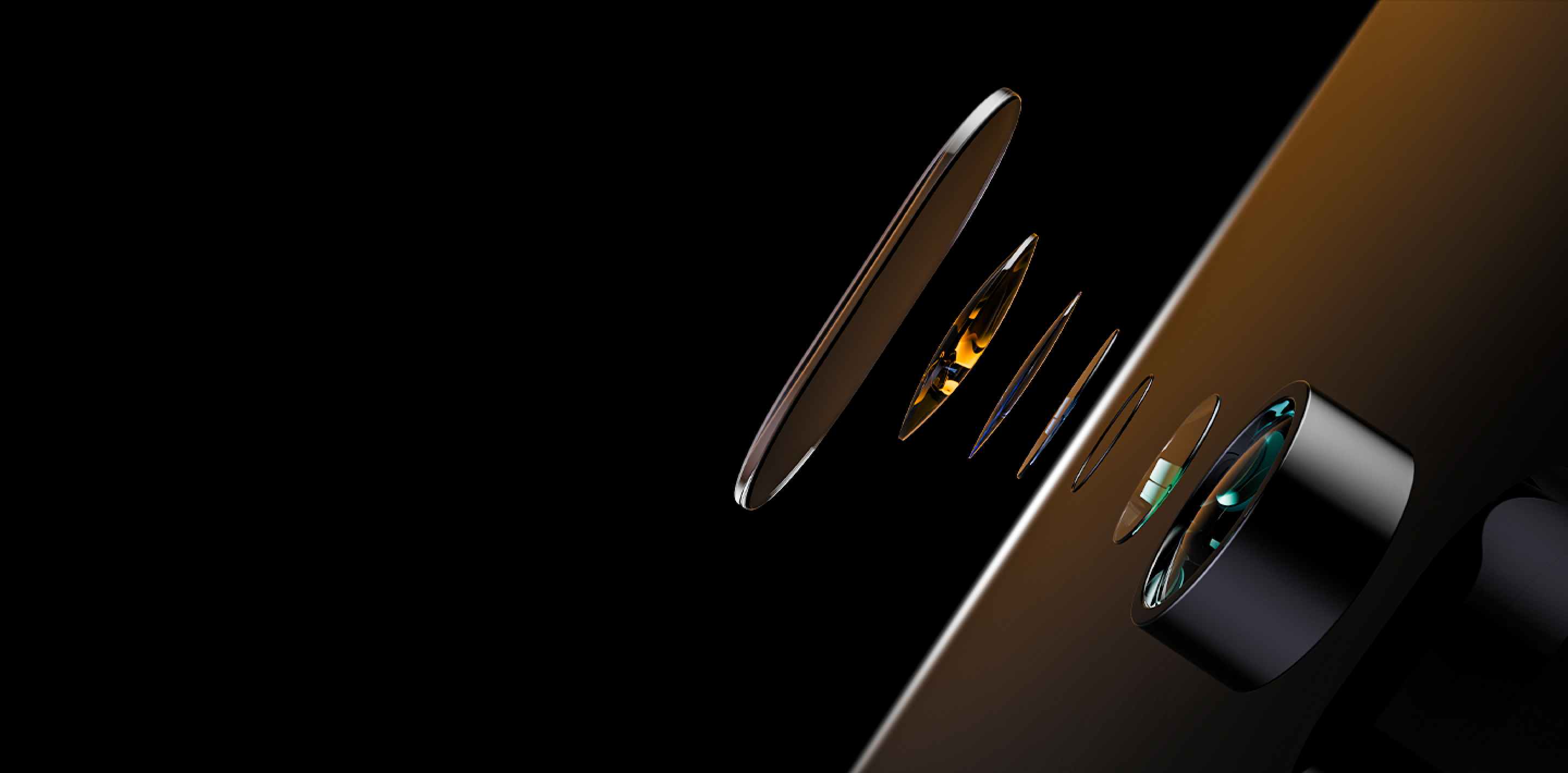

AI

SMART VISUAL
CAMERA
1080P

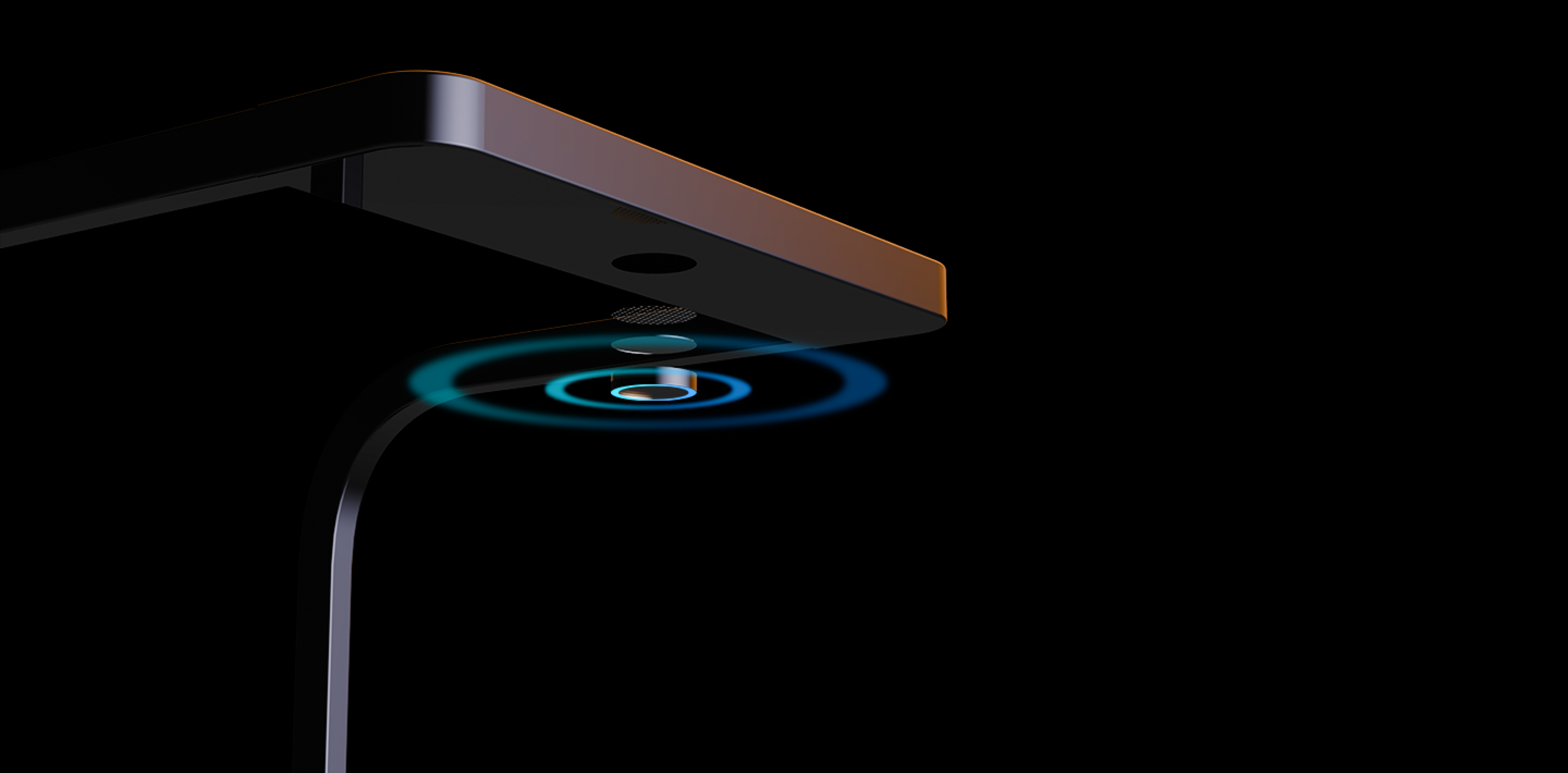

Ultrasonic
sensor

50K Hz 5mm
Center frequency Measurement accuracy

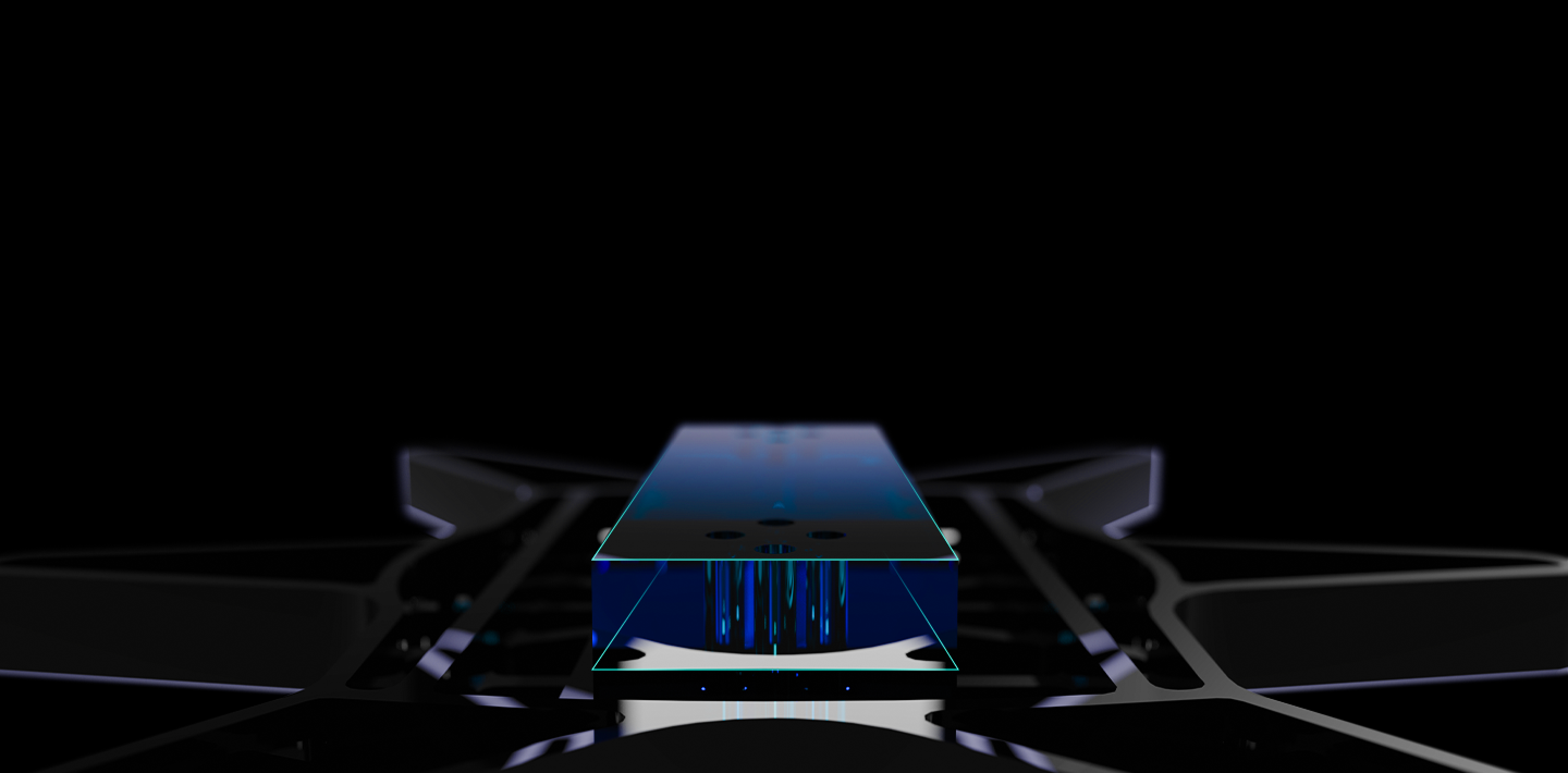

Horizontal wave sensor

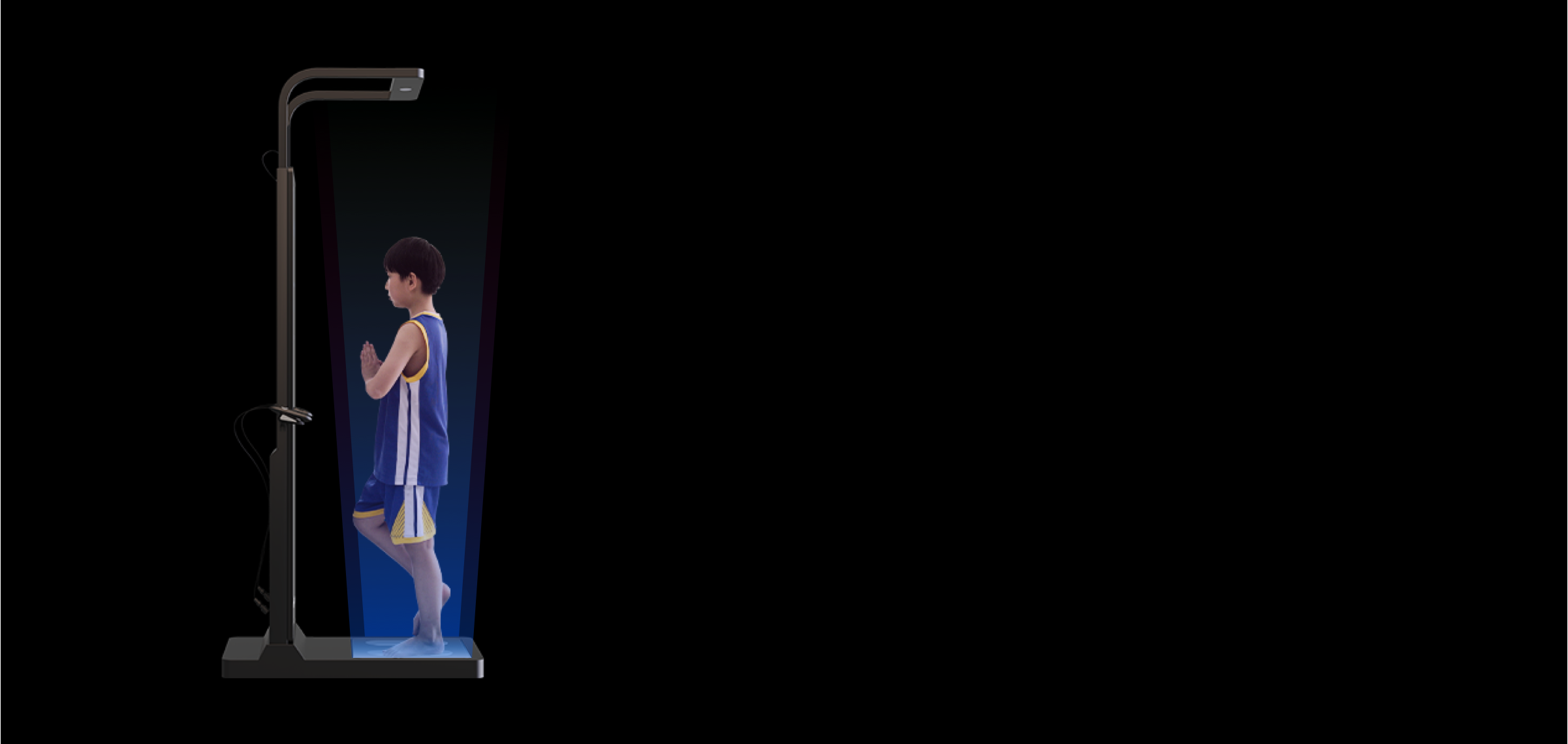

Balance
Assessment

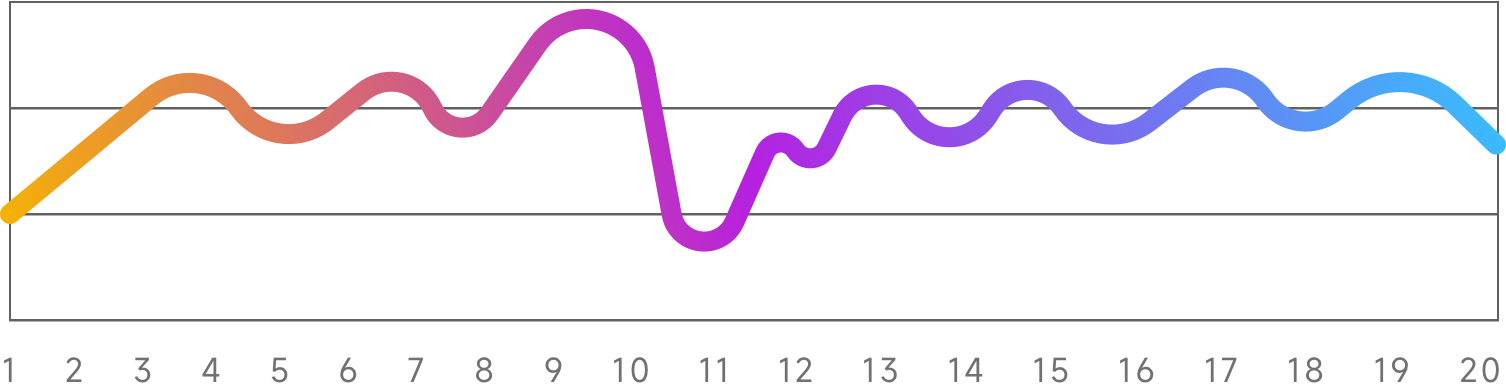

A high-precision horizontal Angle sensor is used to measure the shaking
amplitude of the human body and evaluate the strength of the balance
ability. This evaluation directly reflects the muscle development and control
status, and provides scientific data support for subsequent training.

Physical
risk assessment

High and low shoulders

X/O legs

Hunchback

Pelvis tilted forward
A5 will be
your healthy companion
Medical grade

Blood oxygen

One minute resting heart rate and blood oxygen concentration were measured to assess the strength of cardiopulmonary function, providing accurate data support for daily training intensity planning.

Blood pressure measurement

Medical-grade blood pressure measurement to monitor exercise risk. Eliminate high blood pressure, women's menstrual exercise risk, make exercise more comfortable.

TECHNICAL SPECIFICATIONS:
User ID Login/Phone Number Login On Screen Results
Printable Results Handle Grips
Height Weight
BMI Body Fat Percentage
Muscle Mass Visceral Fat Area
Subcutaneous Fat Area Protein Content
Total Body Water Skeletal Muscle
BMR(kcal) Obesity Degree (%)
Desirable Weight Weight Control
Fat Control Muscle Control
Segmental Muscle Segmental Body Fat
Body Type Classification Balance Test
lung Capacity Test Fat-Free Body
Bone Mass WHR
Body Age SpO2 %
Blood Pressure Test Exercise Intensity
Lower Body Power Test Responsiveness Test
Vision Test Body Posture Analysis
Total Energy Expenditure (kcal) Calorie Consumption (kcal/hour)
Expected Fat Burning (kg) Target Body Fat
Exercise Program Advice Estimated Completion Period
Body Composition History Pervious Data Comparison

A5 Body Composition Analyzer

Screen Host Brand Anovator
Product Name Body Composition Analyzer
Model A5
Color Black
Operating System Android 7.1
Camera 1080P
Material Tempered Glass Led Screen + Aluminum Alloy
Size & Weight Product Size Host: 1700mm*460mm
Base: 108mm*480mm*900mm
Bracket: 200*451mm*600
Package Size Host: 1810mm*220mm*610mm
Base: 1010mm*577mm*180mm
Bracket: 570mm*437mm*525mm
Weight 67KG
Display Screen Screen Size 32 Inch
Screen Type 1920*1080 IPS HD Touch

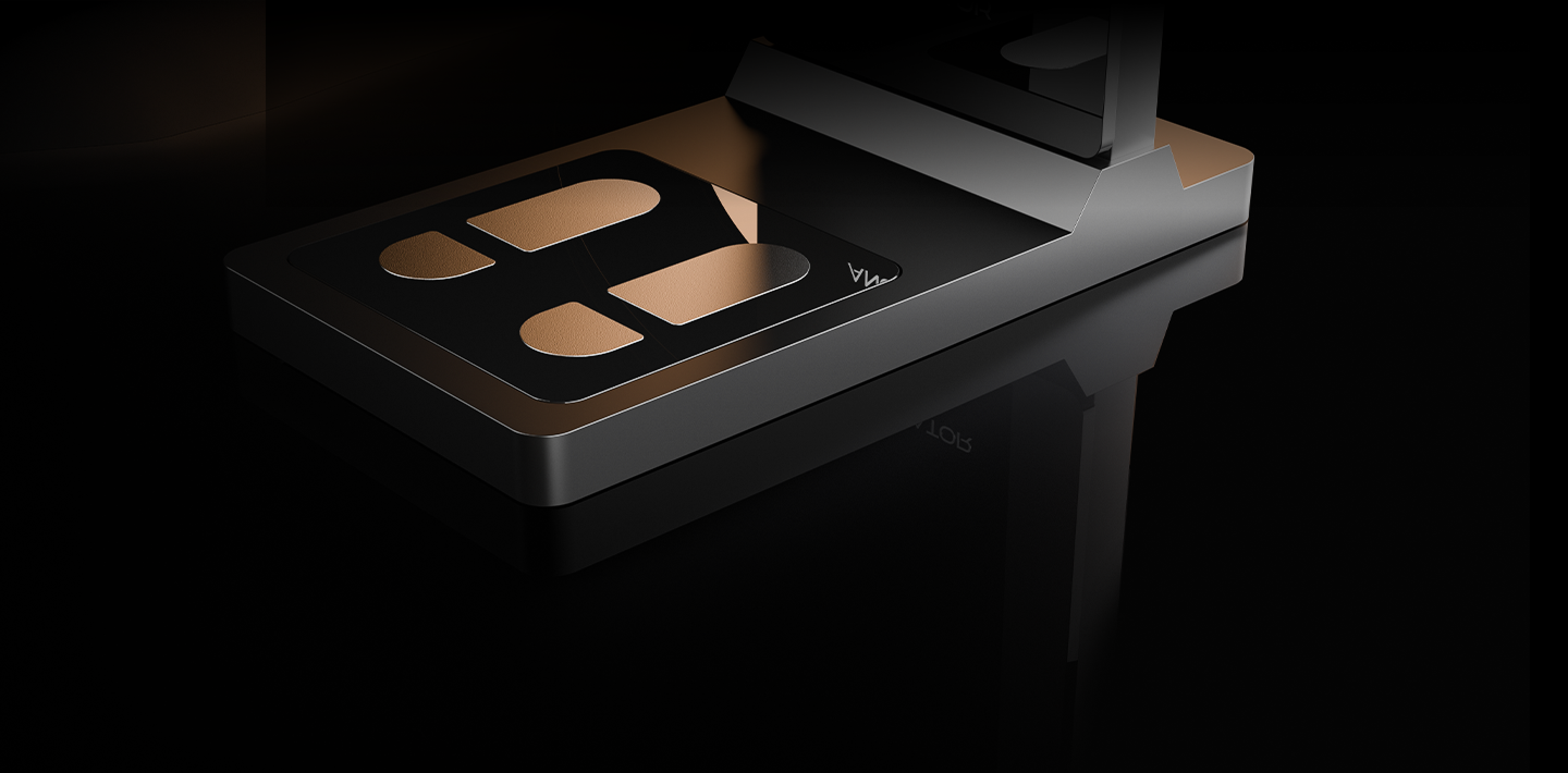

Technical Parameters Measurement methods 8-point contact electrodes, multi-frequency bioelectrical impedance analysis technology
Frequency 20,100 kHz
Electric Current <280uA
Power consumption 60VA
Height Measurement High Frequency Ultrasonic Sensing
Spirometry High Precision Air Pressure Sensor
Function parameter Report Phone/Paper Print Report/Web
Voltage Input: AC 220V，50/60Hz
Output：DC 12V,5A
Transmission Port USB3.0/Bluetooth/Wired/Wireless
Height Range 80-200cm
Weight Range 0-200kg
Age Range 3-99 years old
Operating Environment Internet Connection Required
Temperature: 10-40℃, Humidity: 30%-75%
Do not place the device by the window to avoid direct sunlight.
Do not shine direct light on the device screen.
Do not hit the device hard.
Save the environment Temperature: -20~70℃, Humidity: ≤95%
